features
1、Full modular component design, can be against moisture, erosion, dust and magnetism, minimizes maintenance requirements.

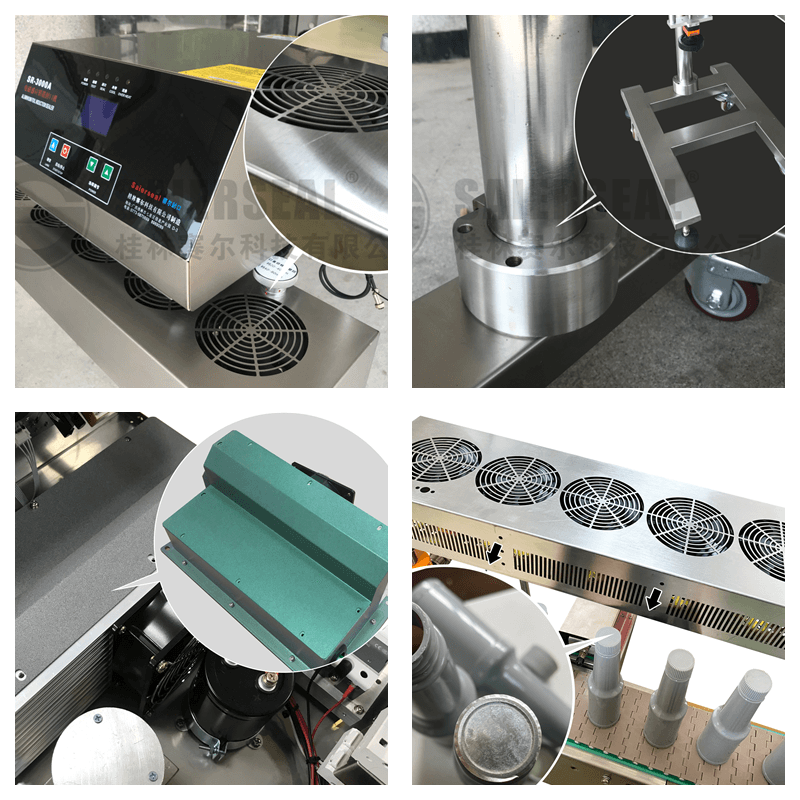

4、The induction sensor with 6 pieces 180℃copper coil and 5 pieces 220V fan( coil quantities can be chance according to bottle neck diameter), it can sealing quickly and perfectly.
5、Full Air-cooling systems, efficient high-speed, it can continual work for whole day
`NOTE: the conveyor and rejector are optional part.

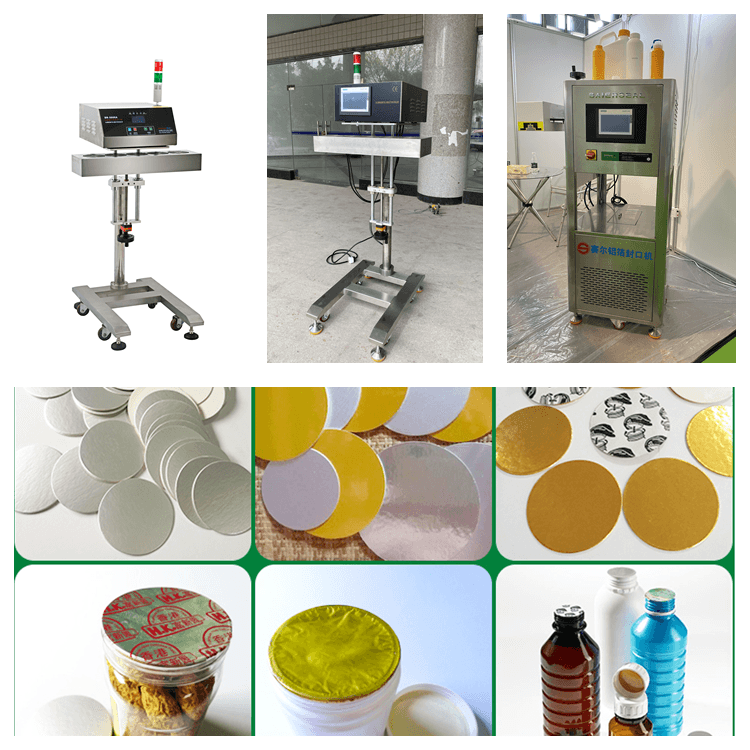

For pesticide, tablet & capsule, foods, cosmetic, lubricant &oil packaging etc. Plastic bottle and glass bottle sealing.
|
model |

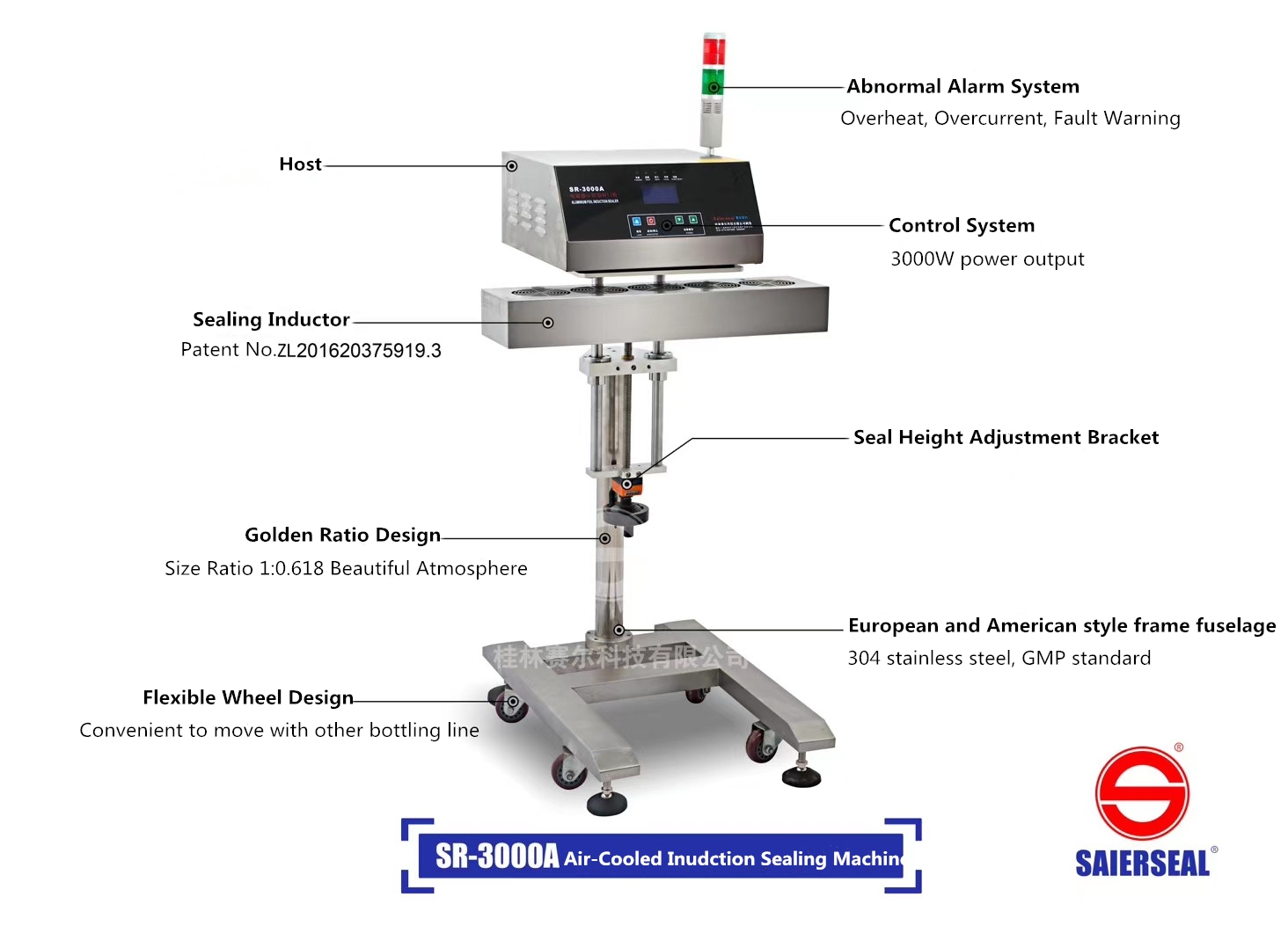

SR-3000A |
|
bottle neck diameter |
20mm-80mm/40-120mm |
|
bottle height |
0-490mm |
|
flow packing line speed |
0-15m/min |
|
max power |
2500W |
|
sealing speed |
0-250blts/min |
|
electricity power |
220V， 50/60Hz |
|
665mm*170mm*100mm |
|
|
Induction generator size |
410mm*390mm*160mm |
|
Shelf size |
770mm* 640mm *105mm |
|
machine weight |
65Kg |
|
packaged size |
580mm*530mm*320mm |
|
package weight |
85kg |
